Orthodontics and occlusion S. J. Davies,1 R. M. J. Gray,2 P. J. Sandler,3 and K. D. O’Brien,4
The discipline of orthodontics is directed towards alteration of the occlusion of the teeth and the relationships of the jaws. It is therefore somewhat surprising to find that there is little scientific evidence to support any of the concepts that suggest occlusal goals for orthodontic treatment. Most of the current concepts of orthodontic treatment are based upon personal opinion and retrospective studies. Nevertheless, an attempt is made here to provide a guide to the relationship of orthodontics and the occlusion that is evidence based. Where the evidence is weak, these areas have been highlighted.
In this part, we will discuss:
What are the goals of orthodontic treatment?
1*GDP, 73 Buxton Rd, High Lane, Stockport SK6 8DR; P/T Lecturer in Dental Practice, University Dental Hospital of Manchester, Higher Cambridge St., Manchester M15 6FH;
2Honorary Fellow, University Dental Hospital of Manchester, Higher Cambridge St., Manchester M15 6FH
2Professor of Restorative Dentistry, Unit of Prosthodontics, University Dental Hospital of Manchester, Higher Cambridge St, Manchester M15 6FH
*Correspondence to : Stephen Davies
email:stephen.j.davies@man.ac.uk
REFEREED PAPER
© British Dental Journal 2001; 191: 491–502
The orthodontist’s goal of treatment is to achieve as near perfect occlusion as possible. But what is perfection and what is this ‘optimal occlusion’? If we examine the early orthodontic literature, we will find that the founder of contemporary orthodontics, Edward Angle, attempted to treat his patients’ occlusion with reference to the occlusion of a skull displayed on a shelf in his surgery. This skull was affectionately termed ‘Old Glory’ (Fig. 1a).
 |

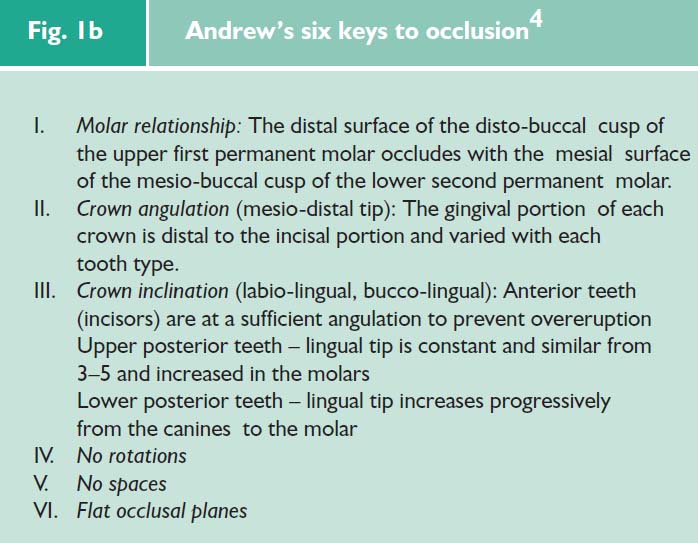

| Fig. 1a ‘Old Glory’: Examination of the dentition reveals that this is, indeed, an ‘optimal’ occlusion. There is a perfect buccal interdigitation, overjet and overbite. These aims were modified by the concepts of Andrews who introduced the ‘six keys of occlusion’ (see Fig. 1b) |
There is no doubt that the introduction of, firstly the six keys philosophy (Fig. 1b), and secondly, the pre-adjusted edgewise appliance designed to achieve them was a quantum leap for orthodontists.
|
|
Unfortunately, there is no evidence that achieving this ‘optimal’ occlusion has any influence upon long-term stability, masticatory function or the alleged association between orthodontic treatment and temporomandibular disorders.
The prime reason for a patient to seek orthodontic treatment is to gain an improvement in appearance. Arguably, we should primarily aim to treat the patient’s needs rather than pursue a dogmatic adherence to the six keys of occlusion.
There is fortunately, however, a strong association between the aesthetics of the final treatment (patient’s goal — Form) and the achievement of an ‘optimal’ occlusion (orthodontist’s goal — Function). This is because if at least keys 2–5 have been achieved, the patient will have perfectly aligned upper and lower front teeth, irrespective of the relationship between the jaws. In Figure 2, the patient has a ‘six key occlusion’. In Figure 3, the patient does not have an optimal buccal interdigitation (keys 1 and 2 missing), yet there is very little perceptible difference in the aesthetics of the dentition.
 |
 |
 |
| Fig. 2 ‘Six keys to occlusion’ are present (after Andrew ); a perfect smile | ||
 |
 |
 |
| Fig. 3 Not all ‘keys to occlusion’ have been achieved but aesthetics are still good | ||
The concept of treating toward an ‘optimal’ occlusion is not based on any evidence on the long-term effects of orthodontic treatment
One should remember that the ‘perfect occlusion’ of Old Glory:
Camouflage vs Modification
It is important to emphasise that it is necessary to carry out a full occlusal examination for all orthodontic patients. It is essential to record not only the patient’s habitual bite (centric occlusion CO or intercuspation position ICP) but also to record the patient’s ideal jaw relationship (centric relation = CR or retruded contact position = RCP). This is done against the benchmark of ‘ideal occlusion’.1 Firstly does CO occur in CR? If not, what is the discrepancy between the two? Secondly does the anterior guidance on the front teeth occur with an absence of posterior interferences?
Without doing this the dentist or orthodontist cannot fully assess a malocclusion or avoid a potential mistake in treatment planning.
This is illustrated in Figure 4. In centric occlusion this patient has an overjet of 5 mm and appears to represent a relatively straight forward orthodontic problem. However, when she is placed into centric relation, the mandible is considerably more posteriorly placed and she has an overjet of 10 mm, which is far more difficult to treat. This is an example of a ‘postured bite’ and is a relatively common problem in Class II Div i malocclusions. Similar problems may arise from crossbites and premature contacts. As a result, this aspect of an examination is essential if misdiagnosis and incorrect treatment planning is to be minimised.
 |
 |
 |
 |
| Fig. 4 A patient who has a 5 mm overjet when occluding in centric occlusion and has a 10 mm overjet when in centric relation | |||
How do functional appliances work? Do functional appliances change the position of the teeth within the jaws or Do they change the relationship between the jaws?
It must be appreciated, however, that the occlusal examination only comprises one part of the articulator system examination; the muscles and temporomandibular joints should also be examined.

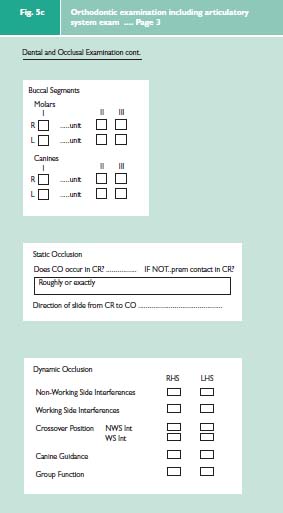

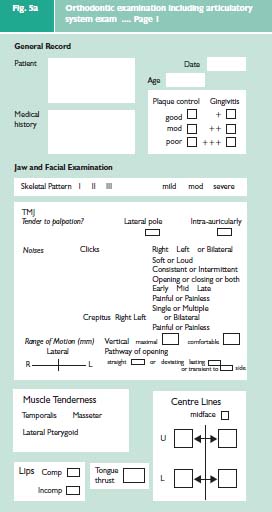

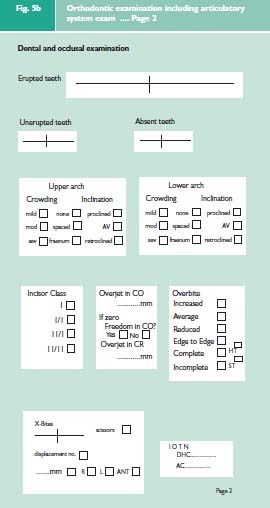

The three elements of an examination of the articulator system2 can easily be incorporated into an orthodontic examination protocol (Fig. 5a–c). This comprehensive examination is divided into two main parts. The jaw and facial examination will record the pattern of the skeletal bases and the facial symmetry, the condition of the TMJs and mandibular muscles, and the soft tissue characteristics. The dental and occlusal examination will record the position of the teeth and their occlusal contacts.
 |
 |
 |
If there is a possibility of changing the jaw relationship, the clinician should examine the patient’s jaw relationship before and after treatment
Orthodontic treatment methods can be divided into two depending on the goals of treatment,3 these are camouflage and modification. To introduce this concept we must first consider the aetiology of a malocclusion, which includes skeletal, dento-alveolar and soft tissue components, the first two components being particularly relevant. An example of the dento-alveolar component is crowding as a result of an adverse tooth-alveolar tissue ratio. When the malocclusion is caused by the skeletal component, the patient typically presents with a discrepancy between the size or position of his or her skeletal bases in the anterio-posterior, lateral or vertical dimension.
At a very simplistic level the orthodontist when faced with these discrepancies has two main choices:
If the treatment is directed at camouflage, space is created in the dental arches by extractions, arch expansion or both, and the other teeth are moved into this space to achieve the treatment objective.
Even if the person has a skeletal discrepancy, the orthodontist may choose to accept the discrepancy and attempt to camouflage the problem by simply moving the teeth.
Unfortunately, whilst the dental appearance can be predicted the facial appearance cannot (Figs 6 and 7). Furthermore, there is no scientific evidence for any technique that may aid in prediction. Some clinicians may say they can accurately predict facial changes, but this claim is totally unfounded.
 |
 |
 |
 |
| Fig. 6a shows the patient before treament | |||
 |
 |
 |
 |
| Fig. 6b shows the patient after ‘camouflage’ treatment. There is a good facial and dental appearance | |||
 |
 |
 |
 |
| Fig. 7 A Cl 2 div ii following ‘camouflage’ treatment; showing good occlusion (7b, 7d), but disappointing facial appearance (7a, 7c) | |||
An alternative treatment is to attempt to change the skeletal pattern. This may be achieved by ‘growth modification’ which comprises the use of functional appliances in the growing child pattern (Fig. 8) or by orthognathic surgery, in the adult pattern (Fig. 9).
 |
 |
 |
|
| Fig. 8a,b Pre-treatment photographs of a Cl 2 patient before 15 months of twin block therapy; Fig. 8c, d Post operative photographs illustrating good dental and facial appearances | |||
|
 |
 |
| Fig. 9a i –iii Pretreatment photographs of a Cl 2 patient before orthognathic surgery | ||
 |
 |
 |
| Fig. 9b i –iii Post operativephotographsillustrating good\ dental and facial appearances | ||
There is currently a debate in orthodontics concerned with the detrimental effect of camouflage on the facial profile. Many orthodontists attempt growth modification treatment for children instead. Surprisingly, there is no evidence that functional appliances alter the skeletal pattern of the growing child in any significant way.5 A recent investigation has shown that most of the change arising from Twin Block treatment is dental tipping with only a small contribution from a change in the jaw relationship.6 It is still not known if such treatment changes the size and shape of the jaws or purely the relationship of the upper to the lower jaw. This type of treatment, if it works, does provide excellent dental results (Fig. 8) and, perhaps, reduces the overall time that a child spends wearing fixed appliances.
Orthognathic surgery obviously alters a person’s skeletal pattern, however, this is a very complex specialist treatment that should only be carried out, after counselling, for those patients who have major concerns with their facial and dental appearance.
One other form of ‘growth modification’ is expansion of the dental arches with either removable or fixed appliances. This type of treatment is gaining popularity with many dentists and orthodontists, especially those who attend courses of the latest ‘orthodontic guru’.
There is, however, no evidence that these appliances can alter the growth of the alveolus and some research has suggested that most expansion is not stable and simply invites relapse in the occlusion.7
There has been considerable research into the potential ‘harmful’ effect of extractions on the dentition, the face and occlusion but it must be emphasised that no scientific study has concluded that orthodontic extractions are detrimental. Unfortunately, the myth still persists and the orthodontists who suggest this type of conventional treatment are frequently described as ‘narrow minded’ and those who ‘do not know any better’.
If a thorough appraisal of the scientific literature is undertaken no evidence of the deleterious effect of extractions can be found.
This link, as always, courts considerable controversy. As discussed there is a tendency to be critical of tooth extraction as part of orthodontic treatment. Implicit in this is the feeling that orthodontic extractions adversely affect the occlusion and furthermore this then leads to a temporomandibular disorder. First premolar extractions are considered by some to be an aetiological factor in TMD, it is suggested that these extractions permit the posterior teeth to move forward resulting in a decrease in the vertical dimension of occlusion.8
Another theory is that first premolar extractions lead to over-retraction of the anterior teeth, particularly the maxillary incisors. The anterior teeth then displace the mandible and the condyles posteriorly. Again, it is hypothesised that this may lead to a TMD.9 These theories may superficially appear plausible. When, however, they are subjected to scientific scrutiny they do not satisfy even the most basic criteria of scientific investigation. The ‘evidence’ that is commonly quoted is derived purely from personal opinion. Until randomised clinical trials have been carried out these theories must remain as simply conjecture, anecdotal and lacking in evidence.
Does Orthodontic Treatment Cause TMD?
Clinical experience and review of the literature does not support any aetiological relationship.
Can Orthodontic Treatment Cure TMD?
Occasionally orthodontics will form some part of the treatment plan.
The relationship between orthodontics and occlusion is important. Unfortunately, supposition and hearsay can govern treatment philosophy.
Confining considerations to factors that are supported by scientific evidence, the following conclusions may be accepted:
