S. J. Davies,1 R. M. J. Gray,2 and J. F. McCord,3
The loss of teeth may result in patients experiencing problems of a functional, aesthetic and psychological nature. This section addresses the very important subject of occlusal considerations for partial and complete dentures. The occlusion is particularly important given the bearing that occlusal factors have, especially on edentulous patients.
In this part, we will discuss:
1*GDP, 73 Buxton Rd, High Lane, Stockport SK6 8DR; P/T Lecturer in Dental Practice, University Dental Hospital of Manchester, Higher Cambridge St., Manchester M15 6FH;
2Honorary Fellow, University Dental Hospital of Manchester, Higher Cambridge St., Manchester M15 6FH
2Professor of Restorative Dentistry, Unit of Prosthodontics, University Dental Hospital of Manchester, Higher Cambridge St, Manchester M15 6FH
*Correspondence to : Stephen Davies
email: stephen.j.davies@man.ac.uk
REFEREED PAPER
© British Dental Journal 2001; 191: 491–502
Historically complete denture prosthodontics has been at the forefront of the study of occlusion and many of the terms used in occlusion have their origin in this subject. The reason that occlusion has always been a consideration in the provision of removable complete prosthetics is because the adoption of good occlusal practice has a significant and immediate impact on the overall success of the treatment, as it affects denture stability. If an inappropriate occlusion is built into a denture then the patient will be unlikely to be able to accommodate to that denture and the dentist will be immediately aware that the treatment has been unsuccessful. The reason why the correct distribution of occlusal forces is so important in the design of removable prosthetics is because the prosthetic teeth that provide the occlusion are not directly attached to the patient.
Students of occlusion have good reason to be grateful to the science of prosthodontics and it remains a part of the undergraduate course where clear guidance on ‘good occlusal practice’ will be available.
Terms like ‘non-working side’ or the more accurate term in a prosthetic sense ‘balancing side’ are based in a study of occlusion from the perspective of complete dentures and refer to the side of the dentures which are not being used for chewing during a lateral excursion. This can lead to confusion when considering the temporomandibular joints during that same lateral excursion because the ‘non-working side’ joint is moving much more than the one on the ‘working side’. The terms ‘Centric Relation’ and ‘Centric Occlusion’ will be used instead of their synonyms of ‘Retruded Contact Position and Intercuspation Position’. Additionally the term ‘Static Occlusion’ will be used to describe occlusal contacts when the mandible is closed and still, and the term ‘Dynamic Occlusion’ will be used to describe occlusal contacts when the mandible is moving. These terms will be used in preference to the ‘prosthetic’ terms of ‘occlusion’ and ‘articulation’.
Prostheses are often considered under the categories of partial or complete dentures, but partial dentures may be supported by teeth, mucosa or a combination of both and, given the fact that the nature of that support dictates the design of the ideal occlusal platform, partial dentures are divided into the following sections:
The concept of the occlusal prescription being ‘conformative’ or ‘re-organised’ has been discussed previously. The formerconforms to the constraints of the patient’s present occlusal scheme while the latter alters orre-organises the current scheme to a more idealised occlusion, sometimes at a raised occlusal vertical dimension. If a partial denture is tooth supported then the design of the occlusion provided by that prosthesis should be to ‘conform’ with and be complementary to the existing occlusion. The only exceptions to this would be ‘rehabilitative’ prostheses, which are occlusal diagnostic splints (Fig. 1) and hybrid prostheses (essentially overdentures) (Fig. 2). The difference between the two is that the splint is not intended to be definitive whereas the hybrid prostheses is. Conventional wisdom indicates that the dentist must determine the patient’s ability to withstand a raised occlusal vertical dimension with a temporary (diagnostic) prosthesis prior to prescribing the definitive denture/prosthesis.
|
|
| Fig 1 Occlusal diagnostic appliance (stabilisation splint) | Fig 2 Hybrid prosthesis |
| Terminology | ||
| Centric Relation (CR) | = | Retruded Contact Position (RCP) |
| Centric Occlusion (CO) | = | Intercuspation Position (ICP) |
| Balanced Static Occlusion | = | Balanced Occlusion |
| Balanced Dynamic Occlusion | = | Balanced Articulation |
In a denture supported by teeth:
If a partial denture is totally tooth-supported the patient’s occlusion is entirely borne by teeth. This has two important occlusal consequences. Firstly it means that occlusal load will be ‘sensed’ by the proprioceptors of the periodontal membranes. Secondly, it is less likely that a poorly designed occlusion will be immediately manifested by the denture being unstable than would be the case if the support was in part or totally mucosa supported.
| The EDEC principle: | |
| = | Examine the pre-existing condition |
| = | Design the prosthesis |
| = | Execute the prosthesis |
| = | Check the occlusion at completion |
The most important aspect of the examination of the patient, for whom a tooth-borne partial denture is to be made, is to confirm that it will indeed be solely supported by the existing teeth, and not in part by the soft tissues. It is advisable, as in all patients for whom a treatment is envisaged, to carry out a comprehensive examination not only of the dental and periodontal tissues, but also of the articulatory system.
E = Examination
The examination of the patient’s pre-treatment occlusion is the first stage.
D = Design
The support for the partial denture must be provided by the abutment teeth in such a way as to avoid a change in the occlusal contact of the other teeth, otherwise the treatment would not be within the conformative approach. Ideally the rests should also be designed to transfer the occlusal load down the abutment teeth along their long axes.
E = Execute
The design criteria as expressed above may require modification of the abutment teeth and/or the opposing teeth. If this is the case, a clear rationale for the changes can be presented to the patient, and is likely to be much better received than alteration to the dentition after or at the fit of the prosthesis.
C = Check
At the delivery stage, a check is made that the prosthesis has added to the patient’s occlusal platform rather than altered its position or dynamic occlusal characteristics. This is easily achieved providing a record of the patient’s pre-treatment static and dynamic occlusal contacts has been recorded. It does not matter whether this is a three-dimensional record such as mounted study models on a semiadjustable articulator, or a two-dimensional record such as a written record or ‘occlusal sketch’ of articulating paper marks. It is obviously impossible to confirm that the treatment has been provided within the conformative approach unless this pre-treatment record exists.
The mucosa under a denture is capable of displacement to a degree that is 20 times greater than that of teeth via the periodontal membrane. 1 Furthermore there is a difference not only in the amount of displacement under load but also in the type of deformation. The periodontal membrane of teeth, under occlusal force, undergoes a simple elastic deformation whereas mucosa undergoes visco-elastic deformation. This means that the recovery from mucosal deformation is more prolonged than that of a tooth in its socket. These quantitative and qualitative differences between tooth support and mucosa support have an important clinical significance; and obviously could cause problems in the construction of a prosthesis in which the occlusal load is going to be shared between what are two very different tissues.
Examination
The examination of a patient’s mouth before the provision of a tooth/mucosa supported removable prosthesis is designed to assess the support, retention and stability provided by the teeth, the ridges and the mucosa. A simple chart is suggested as an aid to this objective (Chart 1).
|
|

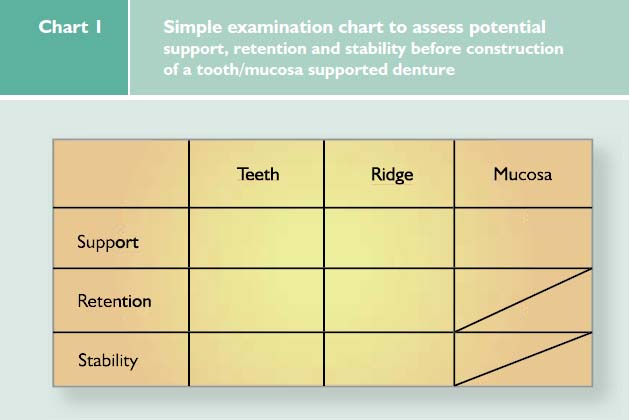

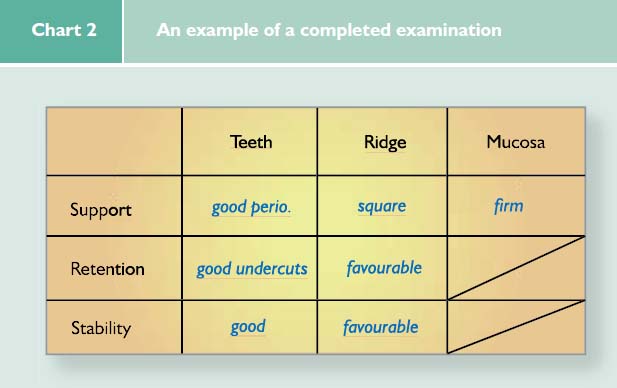

For a patient with favourable prospects for support, retention and stability of their tooth/ ridge/mucosal tissues the chart may appear as in Chart 2. Patient expectations can be better managed if a chart similar to this is used as part of the examination phase
|
|
The principal consequence of occlusal loading onto the more deformable mucosa will be the loss of occlusal contact. This is a particular problem in patients with free-end saddles. It was for this reason that Applegate described a technique of denture construction,2 universally known as the ‘altered cast technique’, which consists of the following stages:
The intention of this technique is to ensure that the occlusal pressure will still be resisted by the ridges after the natural teeth have been minimally displaced into their sockets.
An identical clinical procedure may be undertaken for a reline and this maybe sufficient to restore the occlusion in saddle areas.
Dentists should be under no illusion that mucosally-supported partial dentures will, within a relatively short time, lose occlusal contact with the opposing arch as the underlying bone is resorbed; this type of denture cannot be relied upon to provide a lasting occlusion. In addition, the problem implied in the term ‘gum strippers’ is well known; a typical example is shown in Figure 3 illustrating the iatrogenic effects of selecting a mucosally- supported design. Simple relines are only likely toexacerbate the resorption.
However, not all such designs are necessarily examples of poor dentistry; for instance, training dentures (Fig. 4) are sensible treatment options when the state of total edentulousness is deemed to be unavoidable.
 |
 |
| Fig 3 Gum stripper | Fig 4 Training denture |
It is because of the shortfalls, occlusal and others, that such dentures must only be usedappropriately. It is, therefore, important that a comprehensive examination of the patient enables an accurate assessment of the prognosis of the patient’s dentition.
Figures 5 and 6 show an entirely mucosa supported lower partial denture, immediately after having been supplied to the patient (Fig. 5) there is an occlusion between the denture and the patient’s maxillary teeth; whereas after 6 months (Fig. 6), there is no occlusal contact against the opposing teeth.
 |
 |
| Fig 5 Occlusion at insertion | Fig 6 Lack of occlusion after 6 months |
For many patients, a simple occlusal prescription is all that will be required, ie the patient has ‘evolved’ to using essentially vertical mandibular movements with little or no lateral and protrusive mandibular movements. In this case, no elaborate occlusal scheme is indicated, nor is a semi-adjustable articulator, because the dynamic occlusion can be ignored.
It has been said that ‘a patient with no eyes cannot see, a patient with no legs cannot run, yet a patient with no teeth expects to eat and act with dentures as with natural teeth’.4 It is unlikely that this can be achieved, but it remains the goal.
The design of an occlusion in complete dentures is different from that of the dentate patient. While both are concerned with the final act of intermaxillary closure, the absence of direct attachment between the dentures and the patient’s musculo-skeletal system requires a different set of guidelines of good occlusal practice.
For all these reasons, it is important to consider the role of occlusion in complete denture philosophy. The fundamental philosophies governing the biomechanics of complete dentures state that there is a fine inter-relationship between support, retention and stability, and the success of the prosthesis will be dependent in a very large part on these features. Importantly occlusion is considered a major factor governing stability.4
The minimal level of occlusion that any practitioner should prescribe in complete dentures is balanced occlusion; this is described by the British Society for the Study of Prosthetic Dentistry4 as ‘ even, harmonious bilateral contact between teeth or tooth analogues in retruded contact position (RCP)’. In our terminology this means a ‘balanced centric occlusion in centric relation’ (CO = CR). This is a ‘static occlusion’ concept and this type of an occlusion would ensure that, as a patient elevated the mandible into CR, the dentition would be stable. There would be no tilting/displacing force on the dentures and so stability would not be compromised. Factors which might compromise this stability are illustrated in Figure 7. They are:
 |
 |
| Fig 7a Unilateral prematurity | Fig 7b Too large an occlusal table |
 |
|
| Fig 7c Injudicious placement of teeth | |
For other patients, however, lateral and protrusive movements are part of their normal ‘ruminatory’ mandibular pattern and for these patients, a balanced dynamic occlusion (balanced articulation) is required. In other words, consideration must be given not only to the static but also to the dynamic occlusal prescription.
In this situation, the teeth of the maxillary denture must maintain harmonious sliding contacts with the teeth of the mandibular denture in all excursive movements otherwise denture stability may be significantly compromised. For example, in a natural dentition, the act of protrusion usually results in a posterior open bite (the Christensen phenomenon — Fig. 8). Such a situation would lead to instability in complete dentures, hence compensating curves (Fig. 9a and b) are incorporated into the dentures. The same philosophy holds for lateral excursions.
 |
|
| Fig 8 Christensen phenomenon | |
 |
 |
| Fig 9a F/F with compensating curves | Fig 9b F/F with compensating curves |
This means that the ‘ideal occlusion’ for a patient with complete dentures differs from the ‘ideal occlusion’ for a dentate patient, for example it is ‘ideal’ for complete denture stability if there is no posterior disclusion during lateral excursions, whereas immediate and lasting posterior disclusion is usually considered to be ideal for the dentate patient.
It is because teeth on a denture are not attached to the patient’s neuro-muscular skeletal system and there is no possibility of neural stimulation via periodontal proprioceptors that the criteria of what makes an ‘ideal occlusion’ have changed. Although there are mechanoreceptors in the denture bearing oral mucosa, they do not continue to send a stream of impulses to the sensory cortex.
It, therefore, beholds the dentist to determine the occlusal requirements of complete denture wearers prior to prescribing complete dentures.6 If balanced articulation is required, there is no valid reason for not :
It is a prerequisite, for stability in all complete dentures that posterior occlusal contacts occur simultaneously and bilaterally; furthermore these contacts should occur in centric relation and at the appropriate occlusal vertical dimension. In some patients (those with a ruminatory chewing pattern) it will also be necessary to harmonise the dynamic occlusion in order to ensure denture stability.
The purpose of the examination is to lead to the correct decisions being taken at each stage so that a successful treatment strategy can be made.
The examination of the denture bearing surfaces

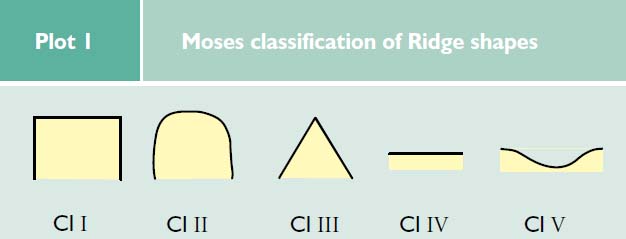

An assessment of the denture bearing surfaces will involve assessment of:
|
|
The Examination of the Existing Dentures
Do the Existing dentures Exhibit?
If the answer to any of these questions is ‘yes’, then the new dentures are not going to be made to the ‘conformative approach’, but rather the occlusion will be changed ie the ‘ reorganised approach’ will be adopted.
The Examination of how the Patient Masticates
The answer to this essential question will in most cases determine whether the patient needs only a balanced static occlusion in centric relation, (‘balanced occlusion’), or whether in addition they should have a balanced dynamic occlusion, (‘balanced articulation’).
In order to determine whether the patient has a chewing pattern that involves essentially only vertical mandibular movements, or also uses lateral and protrusive movements, they must be observed masticating.
This seems self evident, and yet very few patients are treated after determining, by observation, the type of chewing that is used. The appropriate occlusal prescription of the denture cannot be determined without this part of the examination which involves the use of the ‘diagnostic biscuit’ (Fig. 10).
 |
| Fig 10 Diagnostic biscuit |
Treatment Strategy
This will have evolved during the examination:
Should the Conformative or Re-Organised Approach be Used?
In the vast majority of patients with a restorative/ prosthetic need the conformative approach is the method of choice. It offers the dentist the relatively simple task of providing treatment which conforms to the occlusion to which the patient has been accustomed.
In the edentulous patient the re-organised approach may be indicated if the patient exhibits:
If the re-organised approach is to be used; the next question is whether there is a need for a pre-treament phase of splint therapy. If so, copies of the patient’s old dentures will be converted into splints that can be used to establish a new jaw relationship (vertical, horizontal or anterio-posteriorly).
Does the Patient Need a Balanced Dynamic Occlusion (Balanced Articulation), or Only a Balanced Static Occlusion (Balanced Occlusion)?
This question can only be answered by determining, by observation, the type of mastication that the patient employs. This has major consequences for the treatment of the patient, and an assessment, therefore, of the patient chewing is an essential part of the examination of an edentulous patient.
Stages of Construction
It is the dentist’s responsibility to design the denture supporting area on some accurate models and it is outside the scope of this section to expand on this aspect of full denture construction other than to say that it should not be left to the technician.
The term ‘bite registration’ is a poor one; as the patient is not asked to bite into anything; in fact if they do, it is likely that they will make an uncontrolled mandibular movement away from CR.
The purpose of this stage is to record the relationship between the upper and lower jaws; in the vertical, horizontal and anterio-posterior planes. Before this stage can be completed, the decision whether to make the dentures to the conformative or re-organised approach must have been taken. In addition, it must have been decided whether only a balanced static occlusion (balanced occlusion) or also a balanced dynamic occlusion (balanced articulation) is needed. If balanced articulation is indicated a facebow record must be taken so that the occlusal rims can be mounted into a semiadjustable articulator.
Gothic arch Trace
One means by which a balanced articulation is created on that articulator is the gothic arch trace. This trace is made on a ‘central bearing apparatus’ (Fig. 11a). This comprises upper and lower acrylic plates onto which is mounted centrally, a stylus and a platform.
 |
| Fig 11a Gothic arc trace apparatus |
These will record a ‘map’ of the patient’s range of movements, by asking the patient to go into:
|
}excursions. |
The starting point of these movements as inscribed by this trace is the arrowhead (Fig. 11b) and represents centric relation (CR or RCP). If it proves impossible to obtain an arrowhead, this means that the patient does not have a reproducible maxillo-mandibular relationship. This is an important finding and would indicate the need for some further predefinitive treatment in order to discover a reproducible jaw relationship (ie CR).
 |
| Fig 11b Gothic arc trace arrowhead |
This could be achieved by the use of ‘pivotal appliances’. A polished pivotal appliance (Fig.12) may look unusual but it is remarkable how well they are tolerated. After fitting, further adjustments are easily made to find the new occlusal vertical dimension (OVD) and to provide occlusal stability. When all adjustments have been made and the patient has been wearing the appliance comfortably for a period, it is a simple procedure to register centric relation with a registration material placed before and behind the pivots. Pivotal appliances may be made on acrylic bases, or from the patient’s previous dentures. It may be wise to make a copy of the patient’s denture with which to make the pivotal appliance. It will then be possible to return the original denture intact to the patient.
 |
| Fig 12 Registering CR with a pivotal appliance |
The occlusion of the dentures that will be ‘ideal’ for the patient is the one which will limit the tilting of the dentures and so minimalise disruption to the peripheral seal, risking instability. As stated this occlusal prescription will take into account the patient’s denture bearing tissues and their chewing pattern.
On the basis of occlusal form, there are four types of posterior teeth:8
In those patients who need a balanced dynamic occlusion, a cuspal form is essential. The dentist has to consider what is appropriate for the patient. If large ridges are present, anatomical teeth will probably suffice. Whereas, if the ridges are flat or where implant-supported dentures oppose maxillary complete dentures, then teeth with nonanatomical cuspal form may be indicated8,9 as large cusps may induce instability via a tripping effect.
The EDEC principle in complete denture construction (E = Examine, D = Design, E = Execute, C = Check)
The construction of complete dentures is a sequential process. The successful completion of one stage is the prerequisite of starting the next. In order to prevent introducing errors into the sequence it is important to consider what each stage needs to achieve. The EDEC principle is one way of defining the objectives of the process.
E = Examine
The examination of the denture bearing surfaces, the existing dentures and the masticatory pattern will be the basis for
D = the design of the occlusion of the prosthesis.
The first stage of full denture construction is:
E = the execution of that design. This comprises the procedures up to and including the jaw registration. It involves defining the relationship between the denture bearing surfaces in three planes and the design of the ideal static and dynamic occlusion for that patient. At one end of the spectrum this design may be a copy of the patient’s previous prosthesis: ‘the conformative approach’. Alternatively, there may be need to design changes in the vertical height, jaw relationship and occlusal prescription: ‘the re-organised approach’. The design will be achieved and recorded in the jaw registration, when this information is passed to the laboratory technician. From that moment the emphasis of the dentist, during the try-in and completion stages, moves from designing and executing change to
C = checking that there is no deviation from the record supplied to the technician; ie from the bite registration to completion: ‘the conformative approach’
The final section under the heading of ‘mucosa supported dentures’ considers the type of occlusion that is required when a full denture is opposed by teeth or a fixed prosthesis, a condition referred as the ‘Combination Syndrome’.10
There are three scenarios:
Complete maxillary denture opposed by dentate/partly dentate mandibular arch In this situation, these can be considerable displacing forces on the upper denture resulting from mandibular movements, so the retention of the upper denture must be maximised.
Displacing forces can be reduced by co-ordinating the maxillary teeth and maxillary plane of occlusion to mandibular movement. This is achieved by:
Complete mandibular denture opposed by dentate/partly dentate maxilla Success is even more difficult to achieve in this clinical scenario than the former and although similar techniques are recommended, two major problem areas are often present:
Complete maxillary denture opposed by implant retained lower complete denture ‘New Combination Syndrome’
This third scenario is now encountered with increasing frequency. This application of implants is rightly considered for the patient who is suffering because of their unretentive and uncontrollable lower complete denture. But dentists should be aware of the possibility of the patients developing a ‘New Combination Syndrome’.
At its simplest this syndrome will clinically present as ineffective mastication, often associated with a very unretentive upper denture. At its most extreme the patient may exhibit periods when they are unable to exert any control over their mandible or find any position where they can rest it, exhibiting a severe mandibular tremor.
The hypothesis on how this syndrome arises is as follows: As the lower denture becomes more retentive:
Before implants were used, the patient probably developed a purely vertical chewing pattern in an attempt to accommodate to the extremely unretentive lower denture. Once the lower denture is retained by the implants, however, the patient may revert back to a masticatory pattern that includes lateral and protrusive movements (the ruminatory pattern of mastication). The occlusion of the dentures, which was acceptable whilst the patient was chewing only with vertical movements, could now be ‘tripping’ the upper denture.
Good occlusal practice is different in the edentulous patient from that in the dentate patient.
The form of an ideal occlusion for a particular edentulous patient will depend on their chewing pattern and ridge form
Complete denture construction is a sequential process:
As the chewing pattern changes, the features of the ideal occlusal prescription also change
Solutions Some of the solutions include:
The principle is to design and provide an occlusion that is ideal—ideal for the important criteria of denture success — stability. An occlusion is needed that will reduce the displacing forces on the denture(s).
The basic equations are:
Force > Retention = Instability
Force < Retention = Stability
The occlusal prescription provided is a major factor in determining the size of the force applied to the dentures. The retentive capacity of the denture is defined by the patient’s tissue and masticatory patterns.
Force > Retention = Instability
Force < Retention = Stability
